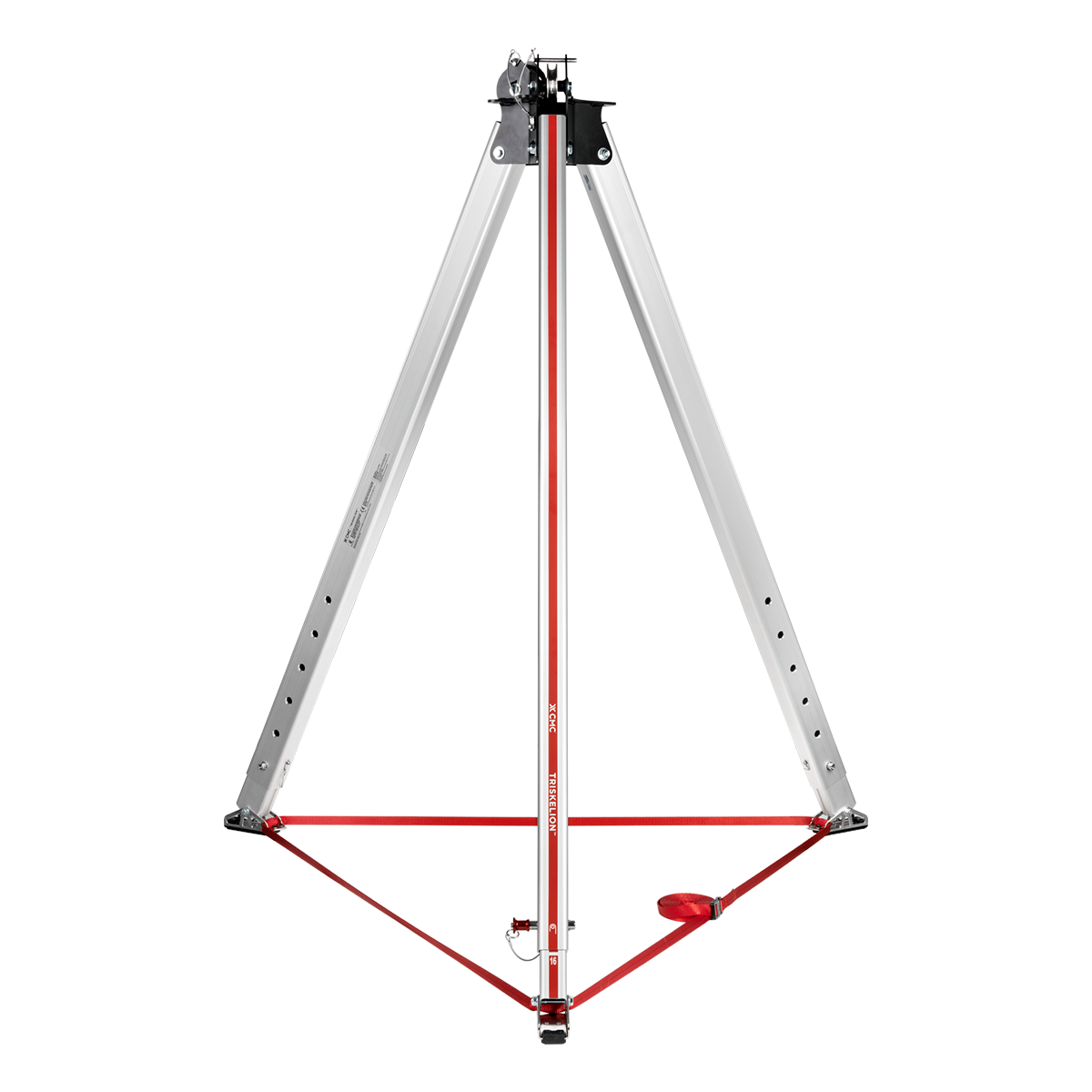

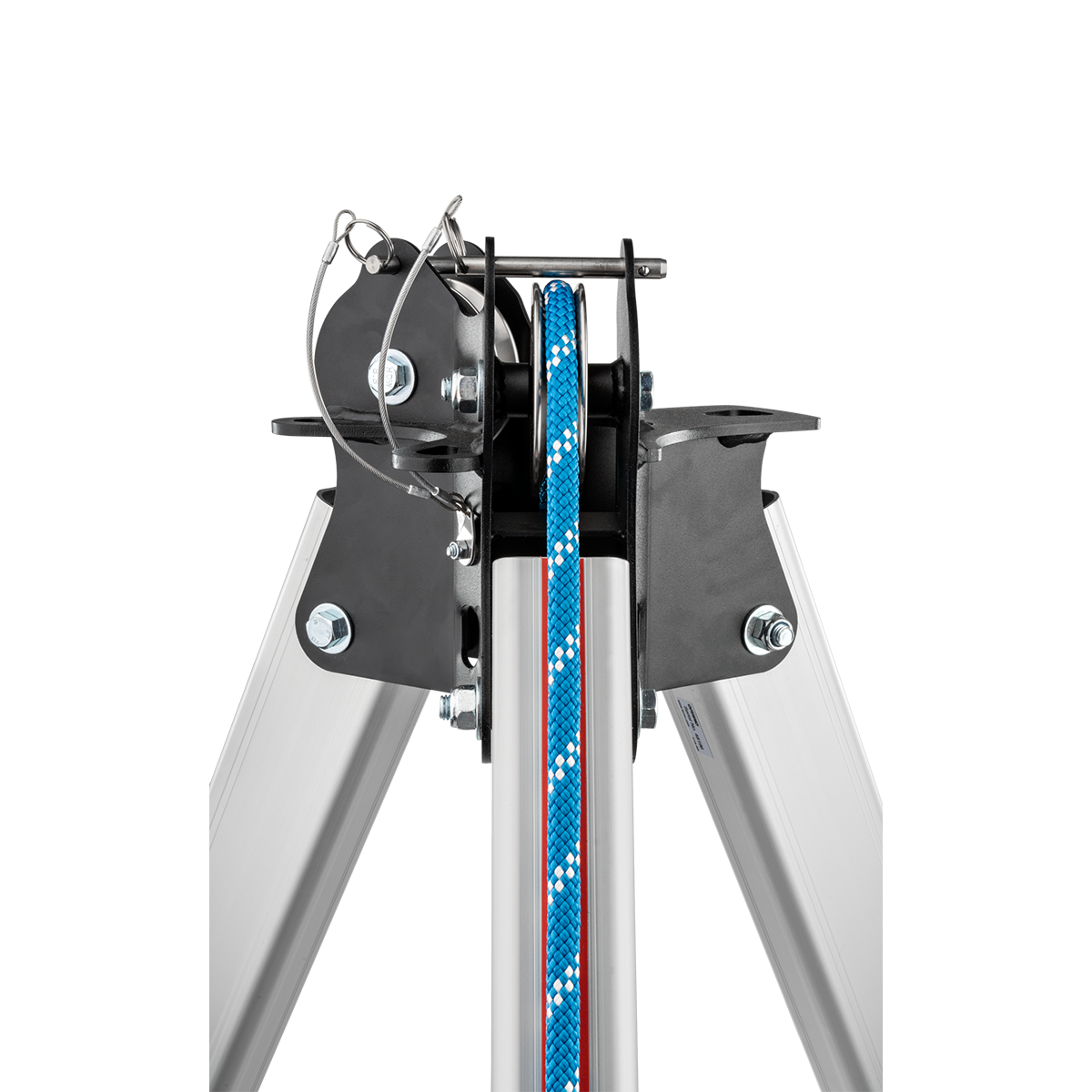

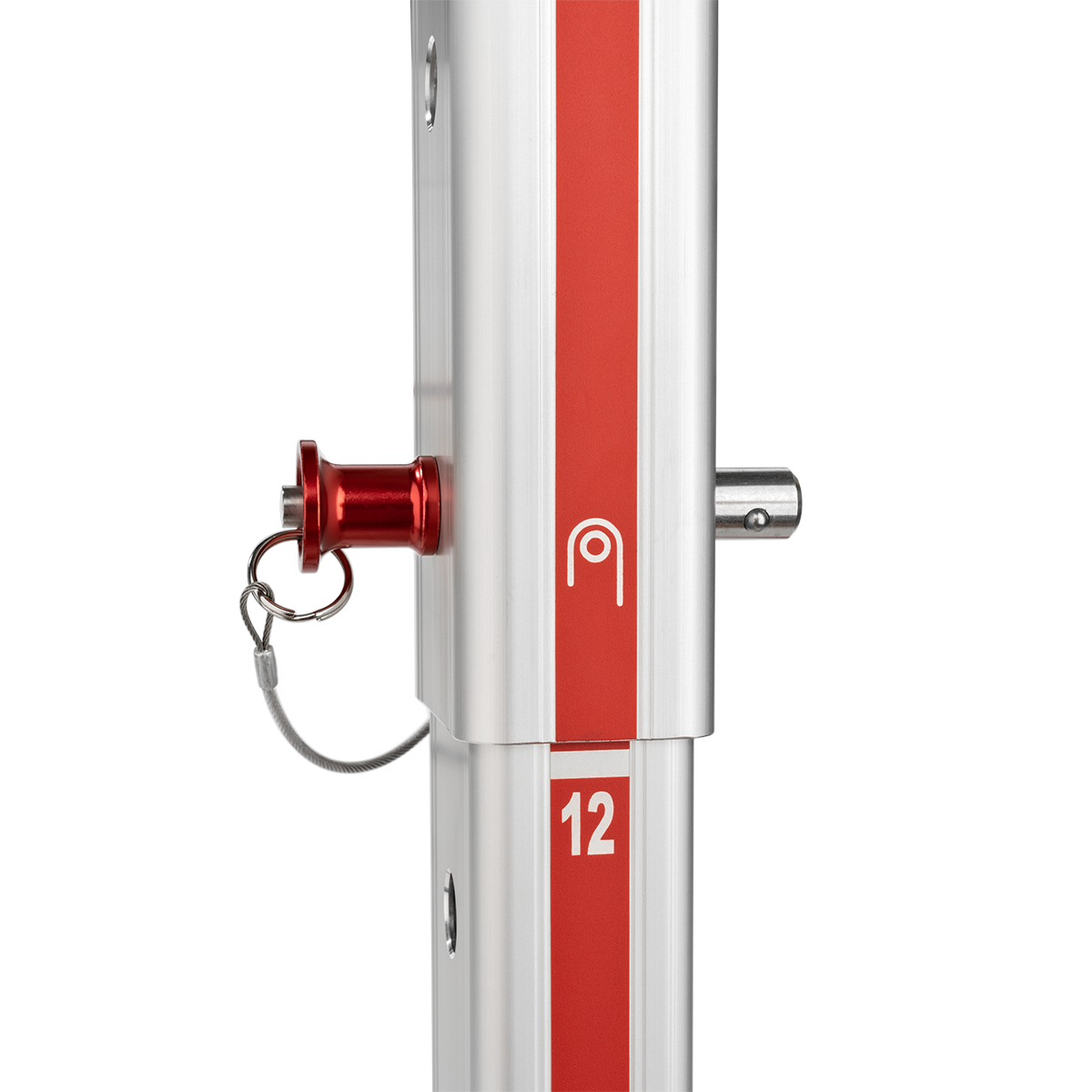

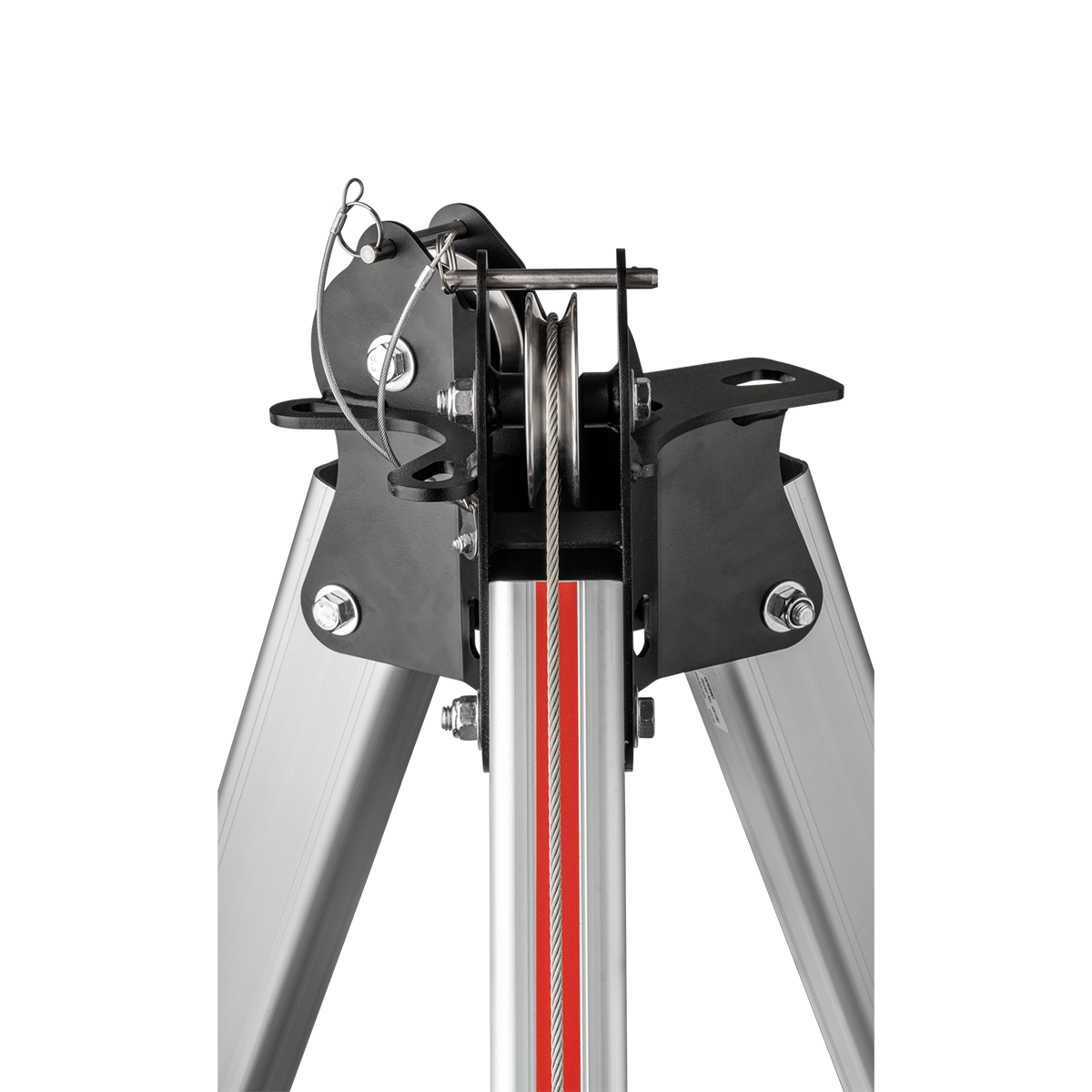

The Triskelion’s impressive working height range adapts to fit low-clearance areas and extends to haul patients in full-size litters. Unique features include its compatibility with cable and rope up to 13 mm (1/2 in), anchor points for pulley systems, multiple winch mounting options, rectangular legs with built-in stoppers, tethered push pins, high contrast graphics, pivoting feet, quick-connect webbing hobble strap, and reinforced carry bag for single or two-person transport. The Triskelion is also supported by thoughtful accessories that enhance its capabilities and make it even easier to use. Height 10ft max working height allows rescuers to haul patients from a confined space using a harness or litter 5.5ft min working height facilitates access to low-clearance areas Rigging Two head-mounted stainless steel pulleys compatible with cable and rope up to 13 mm (1/2 in) Three side-plate anchor points ideal for 4:1s like the CSR2 pulley system Three tie-off points for additional rigging or stabilization Several mounting options for the Harken LokHead Winch and DBI-Sala Salalift II Winch Legs Rectangular shape prevents spinning and properly aligns adjustment holes and tripod feet Built-in stoppers keep the inner legs from pulling out all the way, allowing full extension without risk of separation 4 in leg height increments enable maximum tripod extension in height constricted areas Pins Legs are secured using large, quick-action, ball-lock push pins that are easily handled with gloves Push pins reassuringly snap into place and robust lanyards keep them from getting lost or separated Graphics High contrast graphics are easy to see in low light Leg height numbering is clearly communicated in noisy environments Additional icons guide winch installation to align with head-mounted pulleys Feet Pivoting feet adapt the Triskelion to a variety of surfaces and angles Feet have non-slip tread for hard floors and spiked tips for soft earth Hobble Red webbing hobble strap secures all three legs at the base with a single quick-connect Cobra Buckle Single webbing strap is lighter than chain and faster than using multiple lengths of material Red color is bright and easy to see, drawing attention to the strap and reducing risk of a trip hazard Bag Includes a reinforced carry bag with a diagram indicating proper orientation for balanced single-person transport Easily carried by two people using the end handles, or a single person using the padded center shoulder strap Triskelion kits Includes: Triskelion Tripod Hobble Strap Carry Bag Leg Strap User Manual Technical Specifications MBS– 36 kN (Attached directly to head)– 22 kN (Attached to leg over pulley)Working Height5.5 – 10 ft (1.7 – 3.1 m)Weight32 kg (70 lb)Packed Length in Bag7 ft (2.1 m)Inside Diameter of FeetMinimum Height: 158 cm (62.2 in)Maximum Height: 282 cm (111 in)Outside Diameter of FeetMinimum Height: 193 cm (76 in)Maximum Height: 317 cm (124.8 in) Certifications NFPA GEN 795:2012 Type B for Single Person UseCEN/TS 16415:2013 Type B for 2 Person Use
