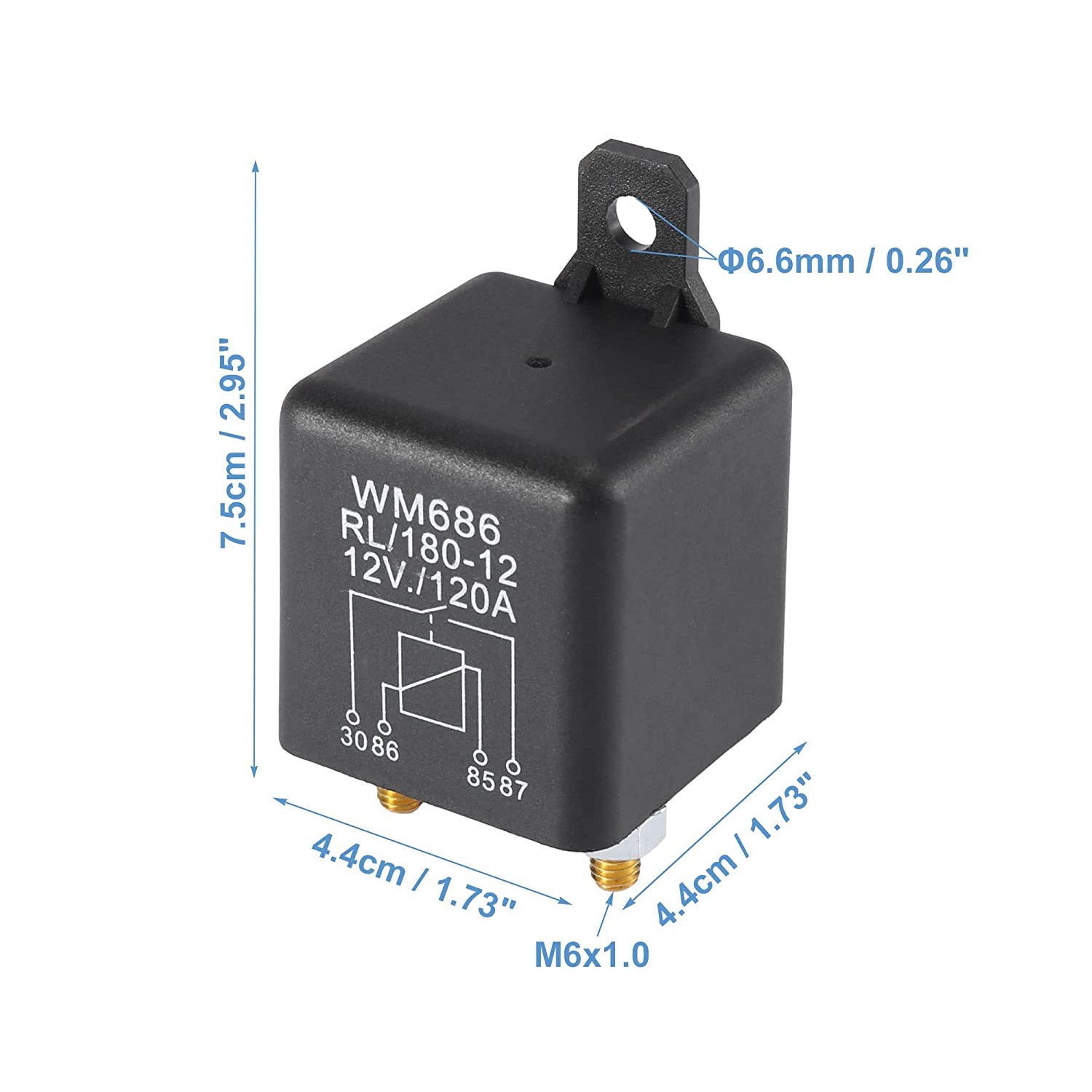

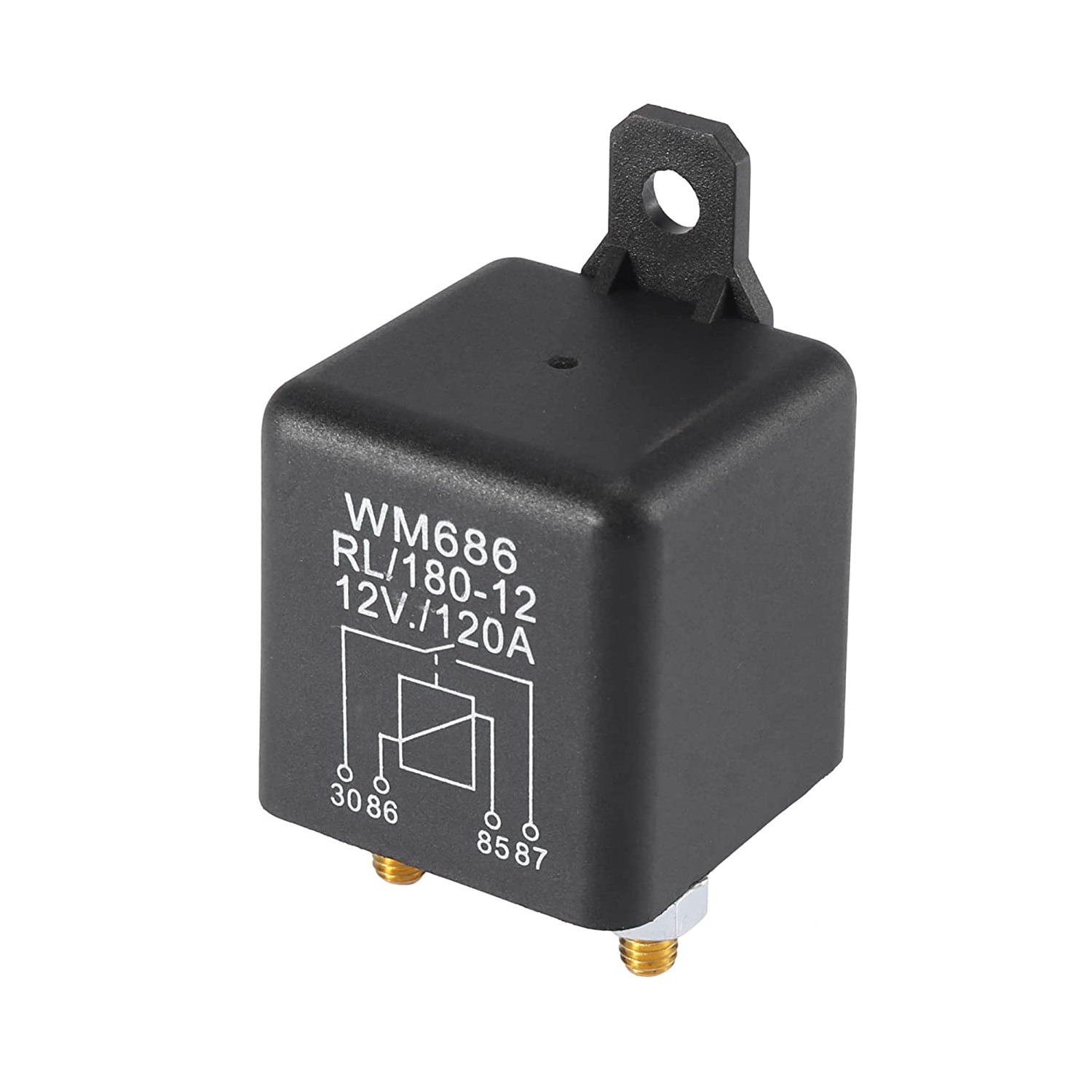

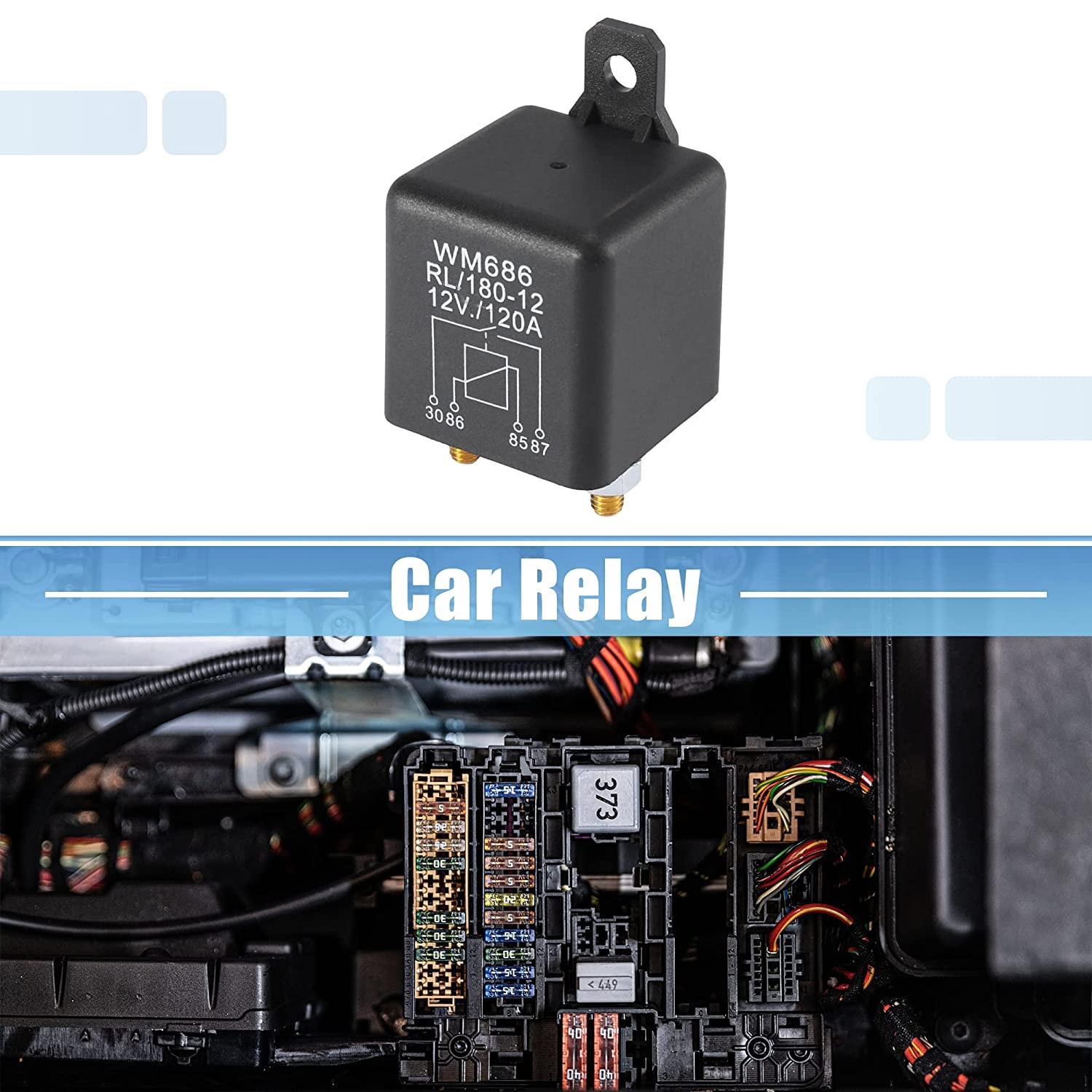

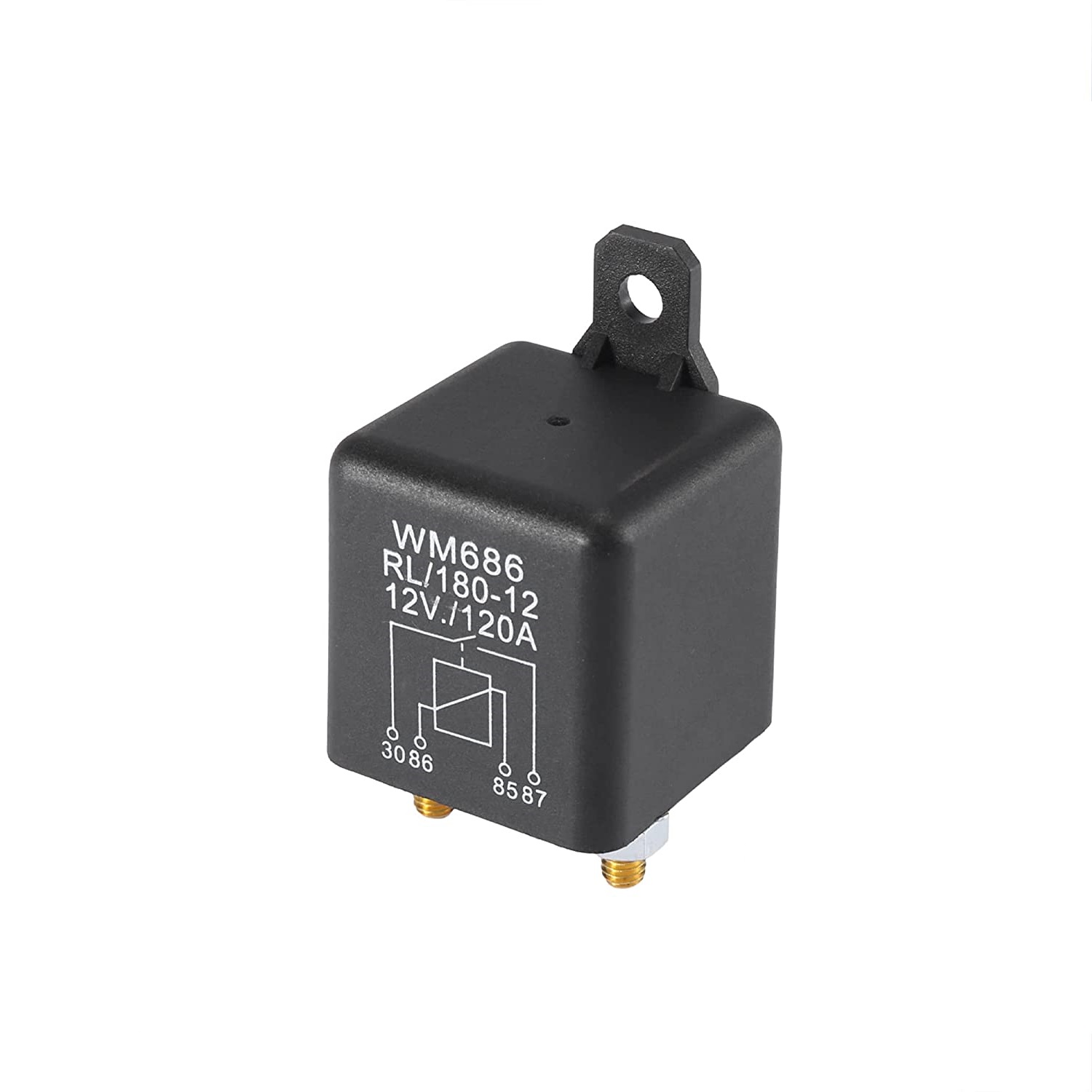

Description WM686 4 Terminal DC 12V 120A Fuse Relay Specification: Terminal Number: 4 Voltage: DC 12V Amp: 120A Colour: Black Total Size: 7.5×4.4×4.4cm / 2.95″x1.73″x1.73″(L*W*H) Relay Hole Diameter: 6.6mm / 0.26″ Thread Size: M6x1.0 Blue Terminal Connector Pin Number: 2 Copper Tone Terminal Connector Hole Diameter: 6mm / 0.24″ Copper Tone Terminal Connector Size: 3×1.3cm / 1.18″x0.51″(L*W) Terminal Number: 4, Voltage: DC 12V, Amp: 120A, Thread Size: M6x1.0 Connection: 85-To be connected to the ground chassis. 86-To be connected to a positive input 12V DC input. 87-Normally open contact, also known as NO. 30-Common contact which can be connected to a 12V DC power input or to the ground chassis depending on the desired application Made of metal and plastic, durable materials for long time service Suitable for cars and motorcycles. Package Includes: 1 X Fuse Relay
