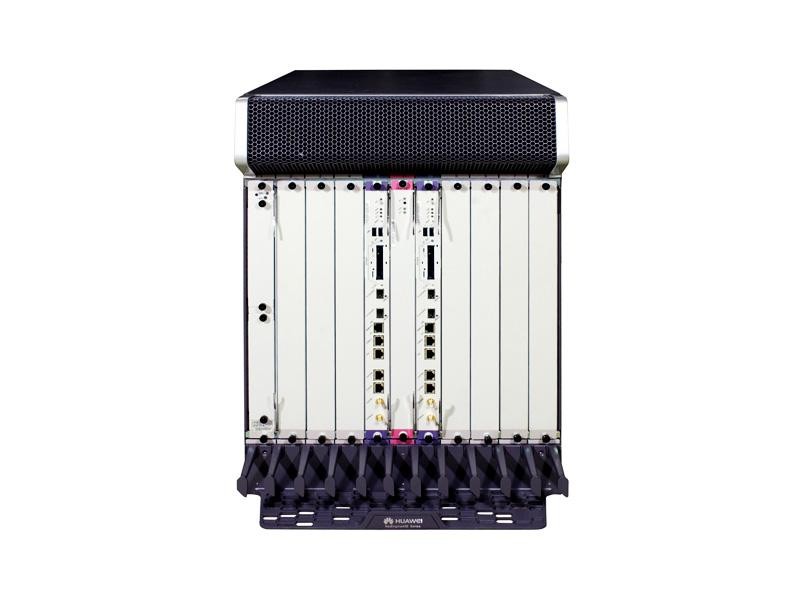

DescriptionCR5P08BASA70 SpecificationsSwitching Capacity7.08 Tbit/sForwarding Performance2,880 MppsNumber of Slots11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2 1 backup), and 8 LPUsDimensions (W x D x H)442 mm x 650 mm x 620 mm (14U)Power Consumption (in full configuration)4,100W (240G)Weight (in full configuration)136 kg (240G)Interface Types100 GE/40 GE10 GE- LAN/WANGE/FEOC-192c/STM-64c POSOC-48c/STM-16cPOS OC-12c/STM-4c POSOC-3c/STM-1cPOSChannelized OC-3/STM-1Channelized STM-4OC-3c/STM-1c ATMOC-12c/STM-4c ATME3/T3CE1/CT1IPv4Support for static routing as well as dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4Line rate forwarding on all interfaces in complex routing environments, for example, when route flapping occursIPv6Various IPv4-to-IPv6 transition technologies: manual tunnel, automatic tunnel, 6to4 tunnel, GRE tunnel, and ISATAP tunnelIPv4 over IPv6 tunnel and IPv6 Provider Edge (6PE)IPv6 static routes and dynamic routing protocols, such as BGP4 , RIPng, OSPFv3, and IS-ISv6IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routingInternet Control Message Protocol Version 6 (ICMPv6), Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIBL2NAT, NAT444, DS-Lite, and NAT64MPLSMPLS TE and MPLS/BGP VPN, in compliance with RFC 2547Inter-AS VPN Option A/B/CIntegration with Internet servicesMartini and Kompella MPLS L2VPNL2VPN techniques, such as VPLS and VLLIP interworking over heterogeneous mediaMulticast VPNMPLS-TP, EVPN, Remote LFALayer 2 FeaturesIEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1sVLAN aggregation (super VLAN)Filtering list based on MAC addresses and ports1483BReliabilityIP/LDP/VPN/TE/VLL FRRProtection mechanisms such as IP/TE auto rerouting, IGP/BGP/multicast route convergence, VRRP, RRPP, IP-Trunk load balancing and backup, BFD, MPLS/Ethernet OAM, Y.1731, and routing protocol/port/VLAN dampingPW redundancy, E-Trunk, E-APS, and E-STPIn-service patching for smooth software upgradePassive backplane designRedundancy backup for key components, such as route processing modules, SFUs, and power modules to guard against single points of failureSwitching between components that hot-back up each otherGR, NSF, NSR, and ISSUHot swap of all componentsQoSWell-designed HQoS and advanced scheduling and congestion avoidance technologies on each LPUAccurate traffic policing and traffic shapingComplex rule definition and fine-grained flow identificationMPLS H-QoS, ensuring QoS for MPLS VPN, VLL, and PWE3 services8CT that combines MPLS TE and the DiffServ modelTE-tunnel-oriented QoSOAMY.1731, IP FPM, RFC 2544, MPLS OAM, 802.1ag, and 802.3ah, OPSMulticastIGMPv1, IGMPv2, and IGMPv3Multicast routing protocols, including PIM-DM, PIM-SM, PIM-SSM, Multicast Source Discovery Protocol (MSDP), and Multiprotocol BGP (MBGP)Static multicastMulticast CACInteroperability between multicast protocolsProcessing of multicast policies based on multicast routing protocols and multicast forwardingMulticast QoS and multicast replication for IPoE access usersTwo-level multicast replication on the SFUs and LPUs to optimize the multicast effectSecurityACL-based packet filteringURPFGTSMDHCP snoopingARP attack defense and DoS attack defenseMAC address limit and MAC-IP bindingSecure Shell (SSH) and SSH version 2 (SSH v2)BGP-FlowspecRIPv2, OSPF, IS-IS, and BGP MD5, SHA256, KeychainValue-added ServicesIPsec tunnelDistributed GRE tunnelDistributed NetStreamHigh-precision NAT: CGNEnvironment RequirementsLong-term operating temperature: 0°C to 45°CShort-term operating temperature: -5°C to 55°CLong-term operating humidity: 5% RH to 85% RHShort-term operating humidity: 0% RH to 100% RHOperating altitude: ≤ 3,000 meters
Netengine40E Series Universal Service Routers
