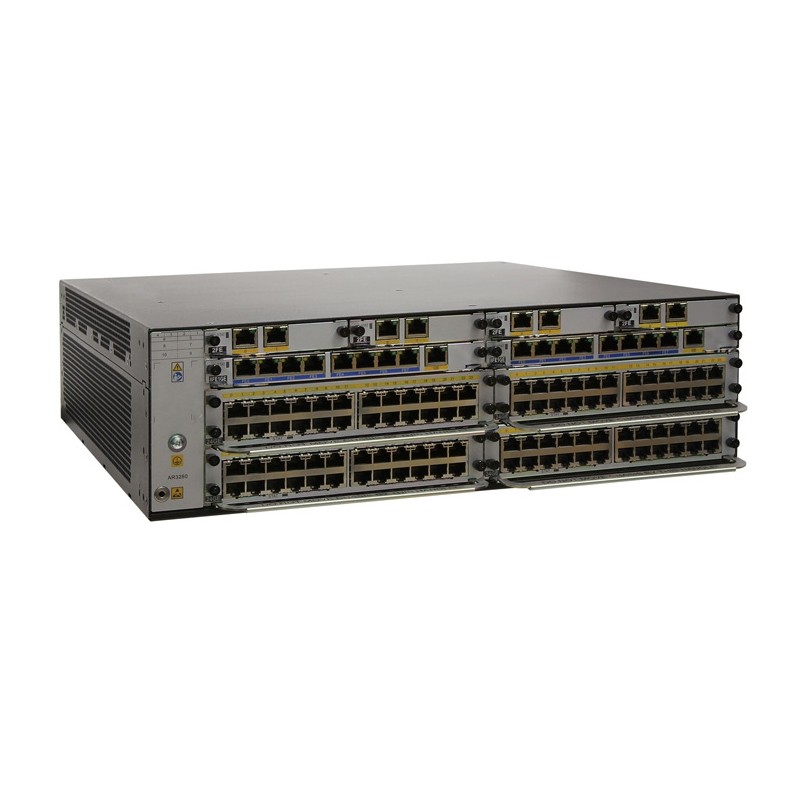

DescriptionAR3260-2X200E-AC SpecificationsTypeHuawei AR3260, 2 Service and Router Unit 200E, 4 SIC, 2 WSIC, 4 XSIC, 2 350W AC PowerDevice Switching Capacity160 Gbit/sSlot Switching BandwidthSIC slots: 2 Gbit/s WSIC slots: 5 Gbit/s XSIC & EXSIC slots: 20 Gbit/sNumber of recommended users2,000SIC Slots4WSIC Slots2 XSIC Slots (default/max)4/6EXSIC Slots (shared with XSIC)1DSP Slots0/3USB 2.0 Ports1/2Mini-USB Ports1Console Ports1Memory2 GB/4 GBFlash (default/max)2 GB/8 GBMaximum Power350W (single power module)/700W (dual power module)AC Power100V to 240VFrequency50 Hz/60 HzDC Power-48V to -60VDimensions (H x W x D)130.5 mm x 442 mm x 470 mmWeight11 kg (without power module and interface card)Ambient Temperature0°C to 45°CAmbient Humidity5% to 95% (non-condensing)Basic FeaturesDHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface managementVoiceRTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC3G3G Interface card (WCDMA)LTELTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)WLAN (AC)AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radiomanagement 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)LANIEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTPIPv4 Unicast RoutingRouting policy, static route, RIP, OSPF, IS-IS, and BGPIPv6 Unicast RoutingRouting policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4 MulticastIGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDPMPLSLDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP, FRR, TE FRRVPNIPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPNQoSDiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (basedon IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP WRRWAN interface:PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart ApplicationControl (SAC), Hardware QoSSecurityACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUSauthentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF,IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracingManagement and MaintenanceUpgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, auto-config,deployment using USB disk, NetConf, and CLI
Ar3200 Series Enterprise Routers
