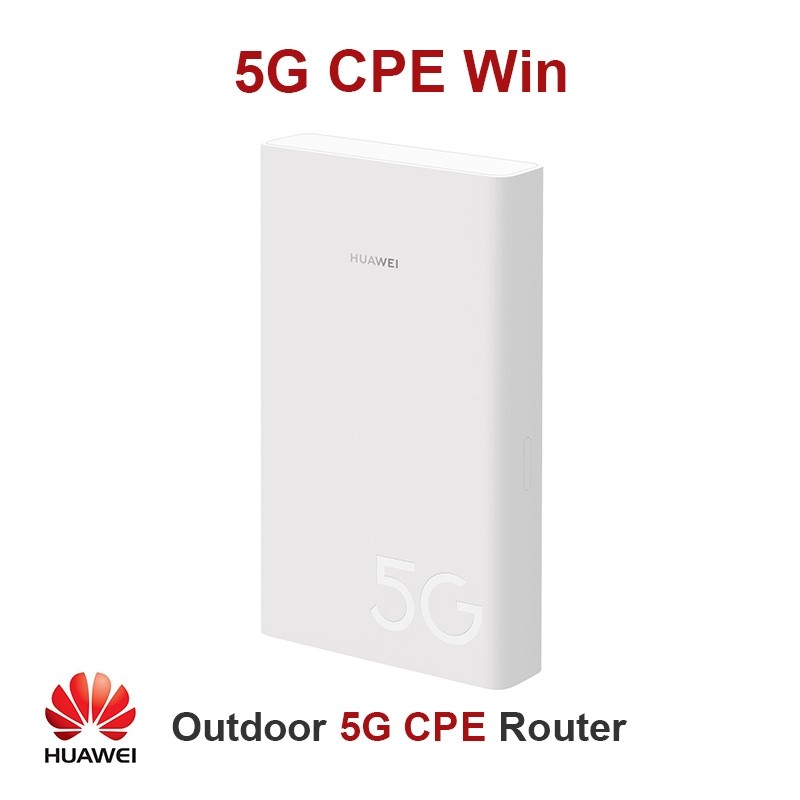

Huawei 5G CPE Win H312-371

DescriptionHuawei 5G CPE Win SpecificationDimensions29.6mm×112mm×187mm5G / 4GCommunication Standard: 3GPP Release 15 Applicable Network: 5G/4G Network Mode: NSA / SA*SA capabilities depend on the available network and software version, which need to be customized. 5G Transmission Rate: 1.65Gbps / 250Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port) 4G Transmission Rate: 1.6Gbps / 150Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)WirelessWireless Frequency Band: 2.4GHz, only for installation and configuration, not for internet accessAntenna5G / 4G Antenna Type: 5G / 4G main and diversity antennas WLAN Antenna Type: Built-in 2.4GHz Wi-Fi antennaProcessorsCPU: Balong 5000 chipsetNetwork Port1 GE Lan port, 1 SIM card slot (Nano-SIM)ButtonResetLed Indicator5G / 4G indicatorPower SupplyPower: < 24WAC / DC Power Supply: AC: 100V – 240V 50Hz / 60Hz, DC: 19V / 1.26ASoftware FunctionsHUAWEI AI Life App Mobile network (5G / 4G) access, Ethernet access, SMS service, firewall, PIN protection, MAC address filtering, Wi-Fi encryption authentication, VPN tunnel / VPN penetration, IPv6 and IPv6 / IPv4 dual stack, multi-APN, WebUI, HOTA, etcEnvironmentTemperature: Operating temperature: -40 °C ~ 55 °C (no solar radiation) , storage temperature: -40 °C ~ 70 °CHumidity: 5% ~ 95% (non-condensing)Packing listHUAWEI 5G CPE Win: 1 (standard configuration)PSU: 1 (standard configuration)PSU power cable: 1 (standard configuration)Ethernet Cable: 1 (standard configuration)Base: 1 (standard configuration)Adjustable pole strap: 1 (standard configuration)Nameplate: 1 (standard configuration)Internal hexagon wrench: 1 (standard configuration)Screw: 4 (standard configuration)Expansion anchor: 4 (standard configuration)Quick Start: 1 (standard configuration)Warranty Card: 1 (optional)
