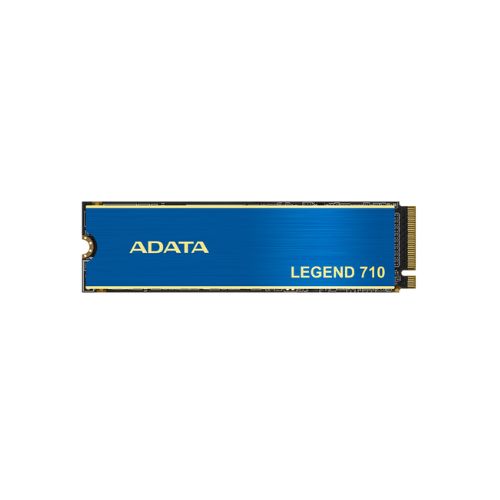

Adata LEGEND 710 512GB PCIe Gen3 x4 M.2 2280 SSD Specification Capacity 512GB Form factor M.2 2280 NAND Flash 3D NAND Controller RTS5766DL Dimensions (L x W x H) 80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink) 80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink) Weight 9g / 0.32oz (with heat sink) 6.2g / 0.22oz (without heat sink) Interface PCIe Gen3 x4 Sequential Read (Max) Up to 2,400MB/s* Sequential Write (Max) Up to 1,800MB/s* 4KB Random Read IOPS(Max) Up to 200K* 4KB Random Write IOPS(Max) Up to 150K* Operating temperature 0°C – 70°C Storage temperature -40°C – 85°C Shock resistance 1500G/0.5ms MTBF 1,500,000 hours Terabytes Written (TBW) 520TB** Warranty 3-year limited warranty*** Adata LEGEND 710 512GB PCIe Gen3 x4 M.2 2280 SSD Overview The 512GB M.2 2280 solid-state drive (SSD) features 3D NAND flash and is powered by the RTS5766DL controller. It offers a PCIe Gen3 x4 interface, providing fast sequential read speeds of up to 2,400MB/s and write speeds of up to 1,800MB/s. In terms of IOPS performance, it delivers up to 200K for 4KB random read and up to 150K for random write operations. The drive comes in two sizes: 80 x 22 x 3.13mm with a heat sink, and 80 x 22 x 2.15mm without the heat sink, weighing 9g and 6.2g, respectively. Designed to withstand harsh conditions, it operates within a temperature range of 0°C to 70°C and can survive storage temperatures from -40°C to 85°C. The SSD also boasts shock resistance of 1,500G/0.5ms, an MTBF of 1.5 million hours, and a total of 520TBW (Terabytes Written). It is backed by a 3-year limited warranty. Categories: ADATA, Component, SSD
